Proxi­Mate™

NIR instrument for the harshest environments

ProxiMate, a NIR instrument for the harshest environments, is designed for the food and feed industry. The compact system can be operated anywhere by anyone thanks to a simple interface and pre-calibration packages that ensure speed and quality.

  • Ingress protection:IP69
  • Sample presentation:Up and Down
  • Wavelength:NIR + VIS
ProxiMate™

Applicative fit

BUCHI application chemists have developed many ready-to-use pre-calibrations for the main food and feed industries. Whether you are analyzing cheese, milk powder or minced meat, you can effortlessly set ProxiMate up to get accurate results, regardless of your level of expertise.

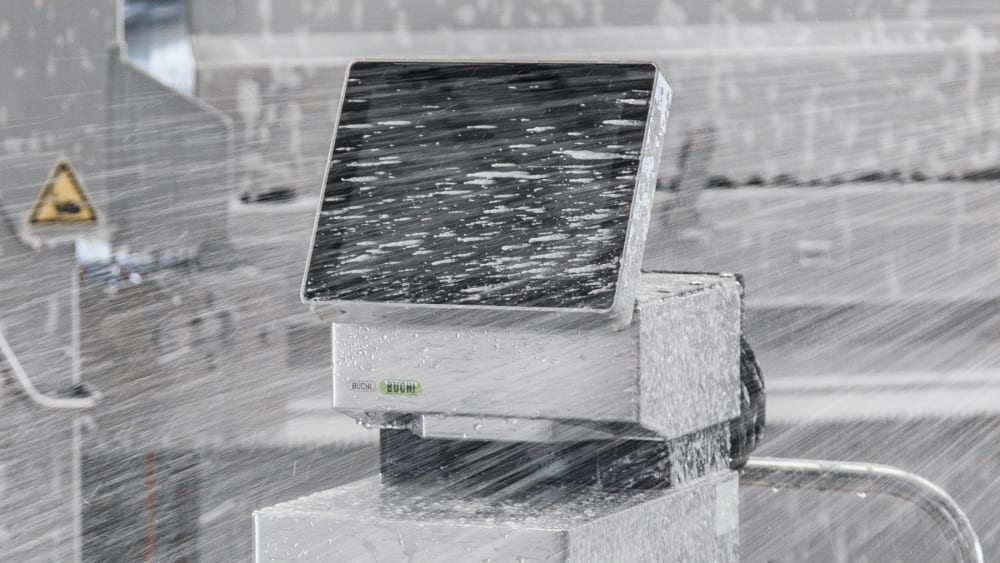

Extreme robustness

ProxiMate is designed to work effectively in the most adverse conditions. Measurements are unaffected by temperature or humidity fluctuations. The instrument can be placed where results matter: right next to the production line. With IP69 ingress protection, ProxiMate can be pressure-hosed down to meet even the most stringent hygiene standards.

Simple operation

Easily operate ProxiMate, a NIR instrument for the harshest environments, via an intuitive, modern touchscreen interface. The touchscreen follows the proven interface logic of BUCHI products, so anyone can easily set up applications, test samples or set preferences.

Features

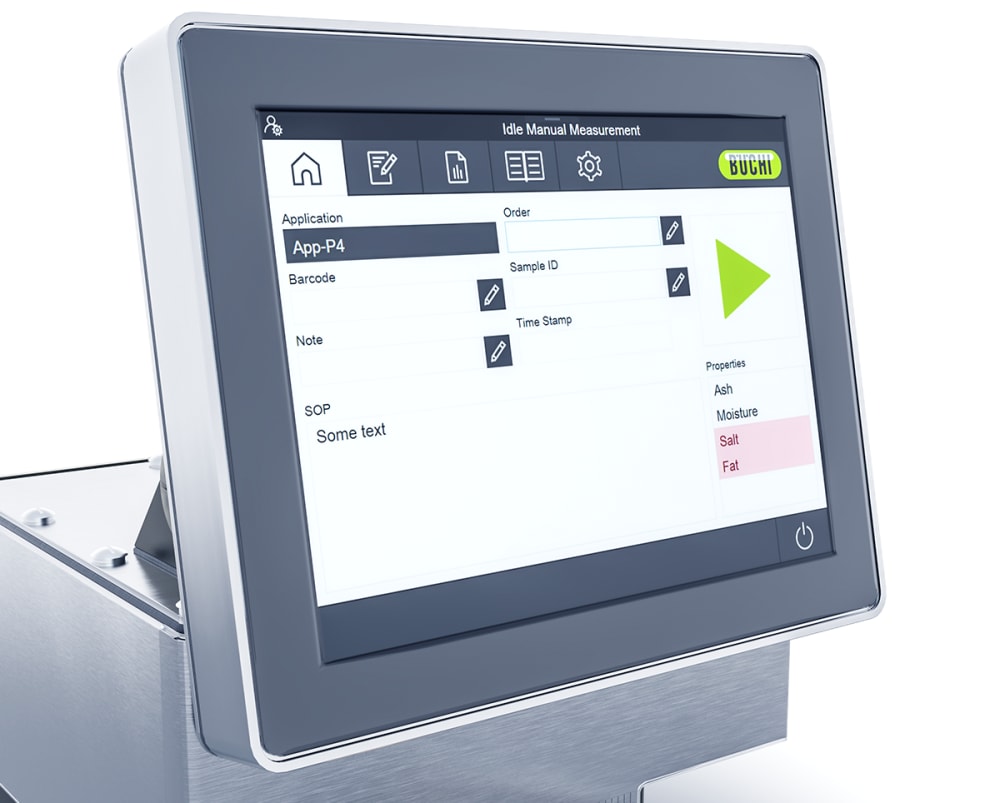

  • All ProxiMates are factory standardized. Calibrations copied between instruments work in exactly the same way. This is particularly important if multiple instruments are used in the same facility or in different factories producing the same product. Instrument standardization leads to improved product consistency irrespective of the location of manufacture.

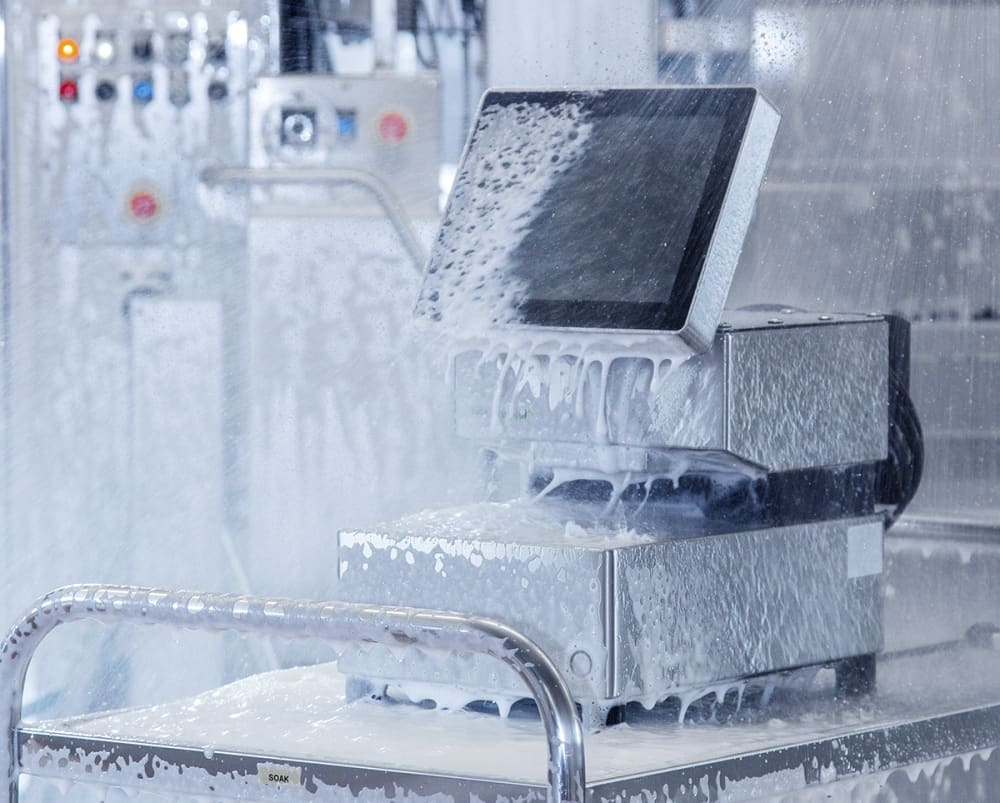

  • ProxiMate can be pressure-hosed down using the same procedures as other at-line equipment or machinery. The instrument is completely dust and waterproof and can resist detergents commonly used for sanitation in food production areas. ProxiMate has been assessed and endorsed by HALAG, the food hygiene agency, as complying with guidelines concerning Hygienic design.

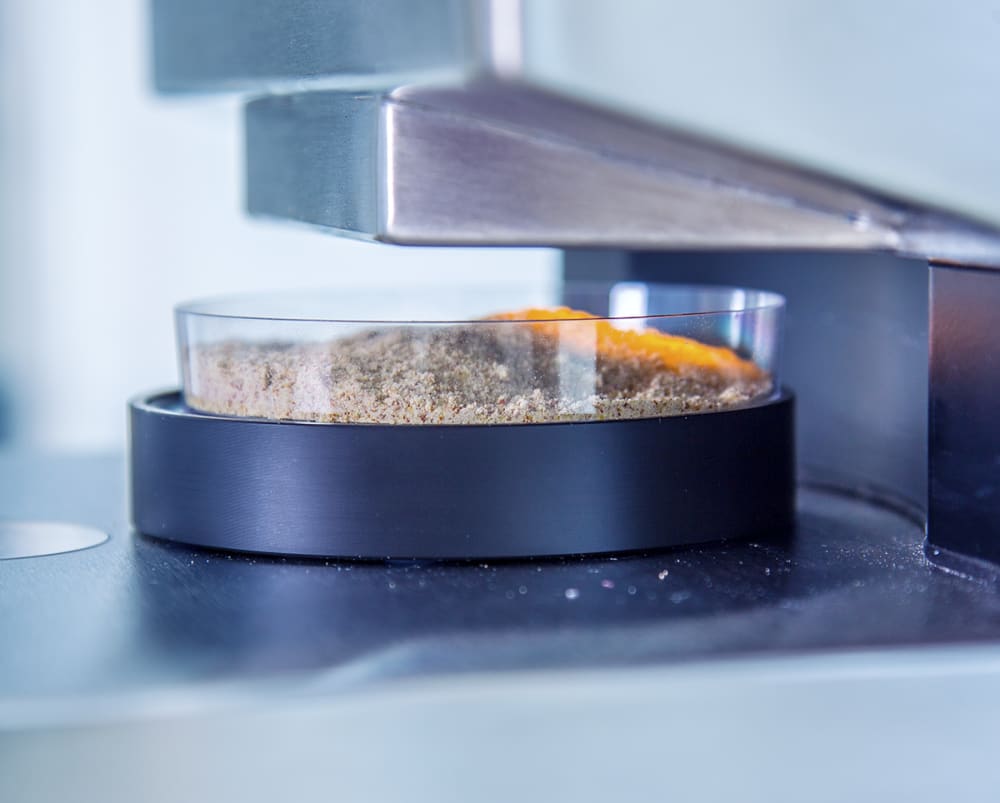

  • Sample type variety can require different analytical approaches for optimum performance or practicality. ProxiMate allows you to capitalize on the best approach by allowing measurement from the top of the sample (down view) or from the bottom (up-view).

Compare the ProxiMate™

  • ProxiMate™ NIR, UV, Std. IP, Large Carrier

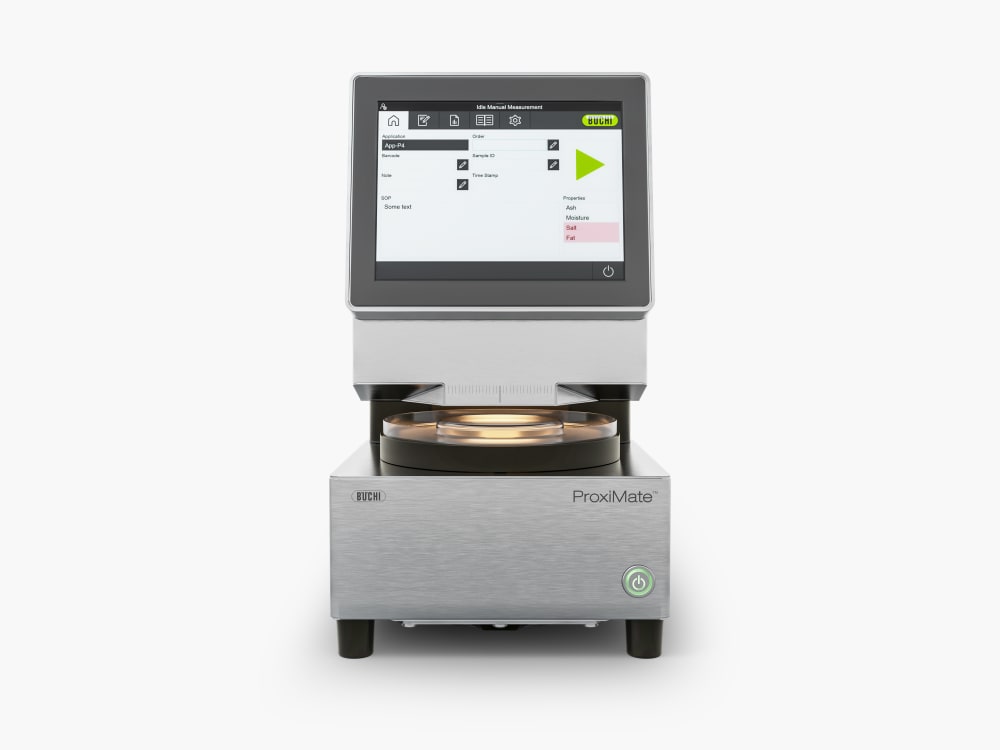

    ProxiMate_Light_Large_sample_cup_main.tiff
    • Optic setup:Up View
    • Measurement options:Diffuse Reflection / Transflection
    • Spectral range:900 - 1700 nm
    • IP module:Standard
    • Sample carrier size:Large
    • IP class:IP69
  • ProxiMate™

    ProxiMate_Large_sample_cup_comparison_02.tiff
    • Optic setup:Down View
    • Measurement options:Diffuse Reflection
    • Spectral range:900 - 1700 nm
    • IP module:Standard
    • Sample carrier size:Small
    • IP class:IP69
  • ProxiMate™

    ProxiMate_Light_Large_sample_cup_main.tiff
    • Optic setup:Up View
    • Measurement options:Diffuse Reflection / Transflection
    • Spectral range:900 - 1700 nm
    • IP module:Standard
    • Sample carrier size:Large
    • IP class:IP69
  • ProxiMate™ Vis+NIR, UV, Adv. IP, Large Carrier

    ProxiMate_Light_Large_sample_cup_main.tiff
    • Optic setup:Up View
    • Measurement options:Diffuse Reflection / Transflection
    • Spectral range:400 - 1700 nm
    • IP module:Advanced
    • Sample carrier size:Large
    • IP class:IP69
  • ProxiMate™ Vis+NIR, DV, Adv. IP, Small Carrier

    ProxiMate_Light_Large_sample_cup_main.tiff
    • Optic setup:Down View
    • Measurement options:Diffuse Reflection
    • Spectral range:400 - 1700 nm
    • IP module:Advanced
    • Sample carrier size:Small
    • IP class:IP69
  • ProxiMate™ Vis+NIR, DV, Adv. IP, Large Carrier

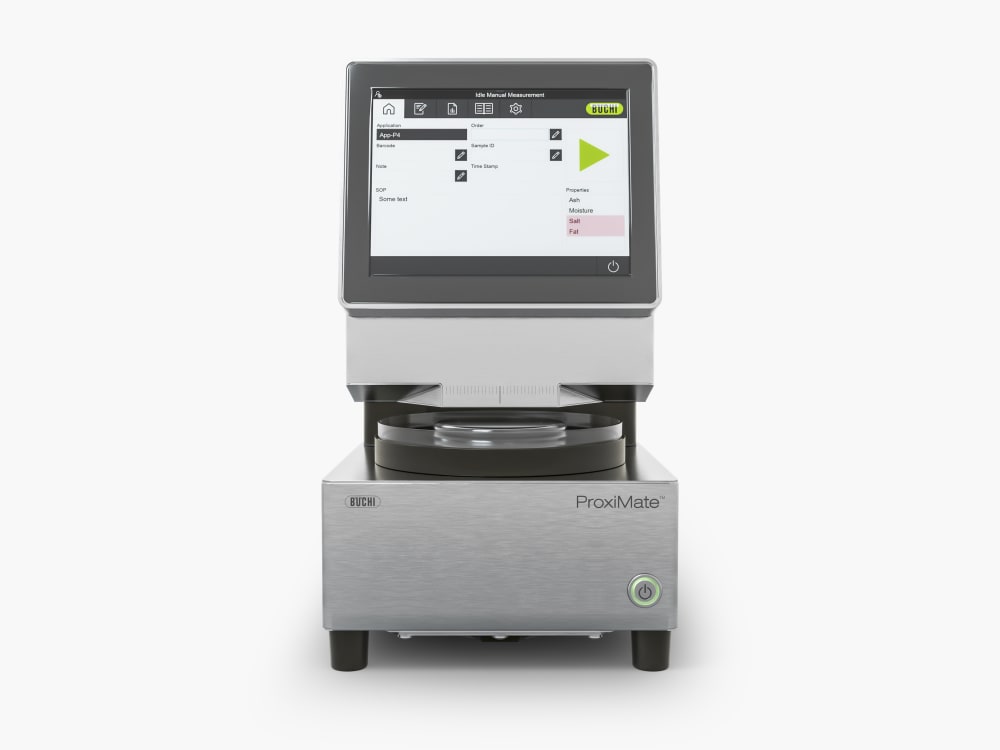

    ProxiMate_Large_sample_cup_comparison_01.tiff
    • Optic setup:Dual View
    • Measurement options:Diffuse Reflection / Transflection
    • Spectral range:400 - 1700 nm
    • IP module:Advanced
    • Sample carrier size:Large
    • IP class:IP69
"Thanks to BUCHI ProxiMate™ NIR, we sped up our production controls, saving money with a faster reaction time. The system is very robust and easy to use. The Autocal ® function allows for a simple calibration process obtaining the best results."Fabio Zotti, Quality Manager - Gruppo Rummo S.p.A, Italy
"Thanks to BUCHI ProxiMate NIR we sped up our incoming raw material analysis, saving money and drastically reducing truck waiting time. The system is very robust and easy to use."Giuseppe di Martino, QA - Labor S.r.l., Italy
