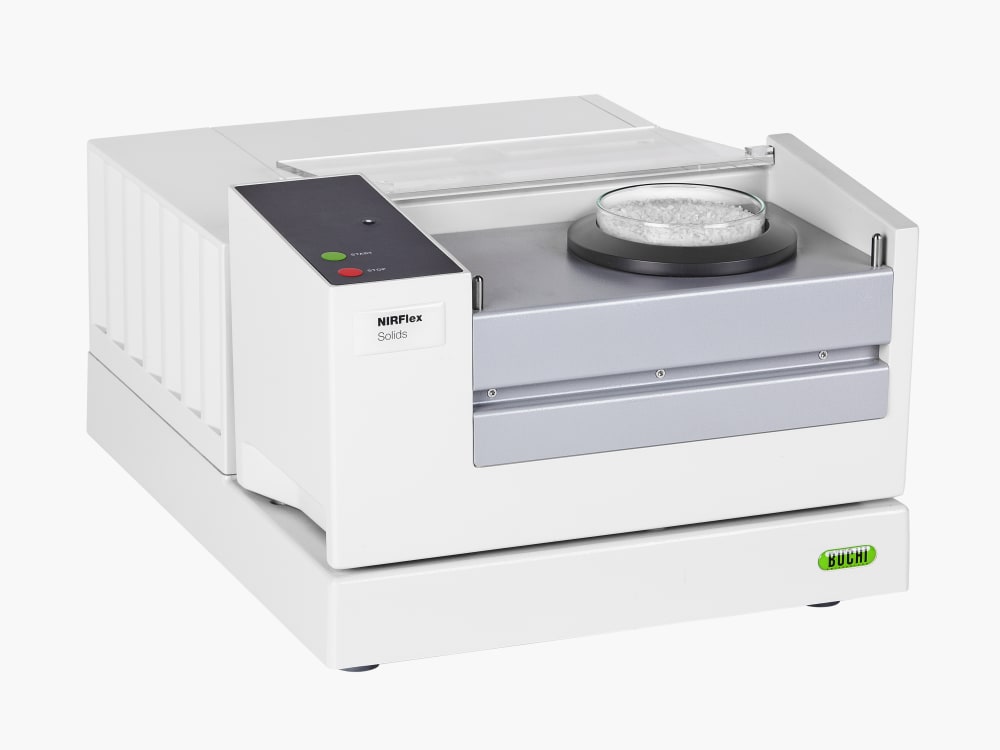

NIRFlex N-500™

The modular FT-NIR spectrometer

The NIRFlex N-500™ is the modular FT-NIR spectrometer that you need for reliable results for QC, R&D in applied science and various industries. The NIRFlex N-500™ offers a wide range of measuring cells and accessories for flexible performance.

  • Expected lifetime: Twin lamp module 2 x 6'000h
  • Flexibility: Different measurement cells
  • Spectrometer type: Polarization FT-NIR
NIRFlex N-500™

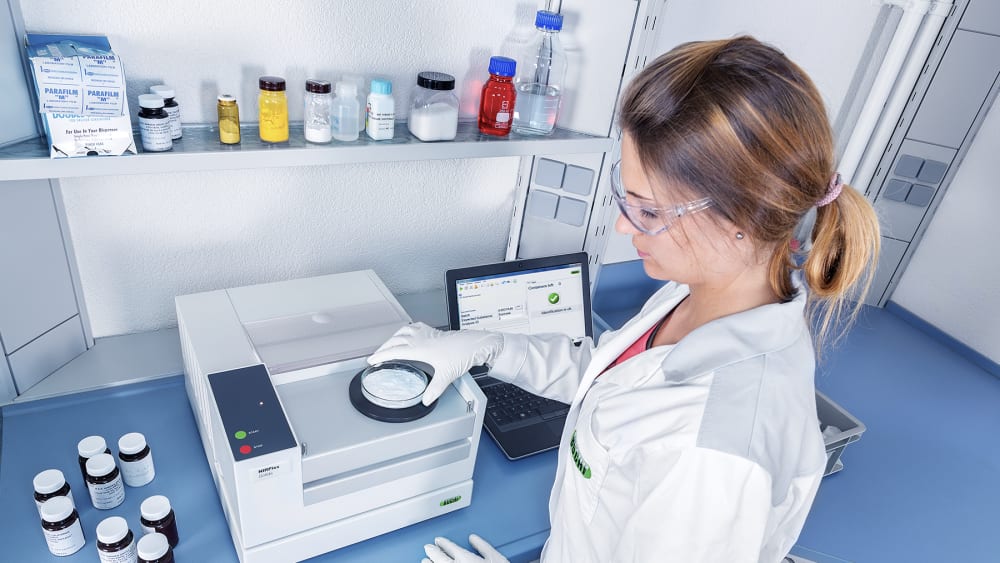

Fast, safe and easy

The modular FT-NIR spectrometer simultaneously delivers results from several parameters in seconds. System use is chemical-free and solvent-free, helping you save costs and improve the safety of your process. Simple and intuitive handling of the NIRFlex N-500 results in a flawless user experience.

Fast, safe and easy

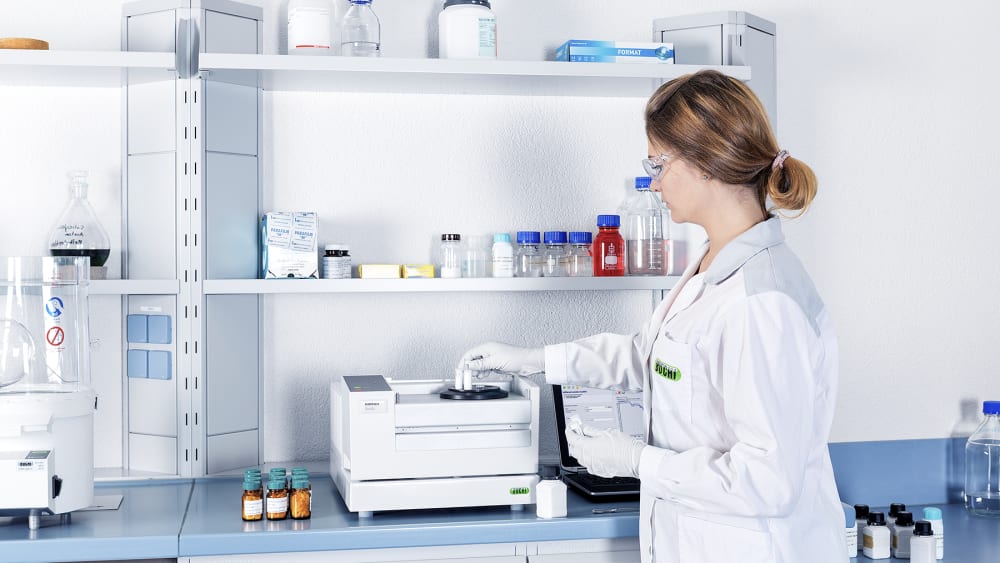

Highly efficient

Rapidly optimize your process thanks to fast analytical results with the NIRFlex N-500. The modular FT-NIR spectrometer is a cost-efficient solution with low cost of ownership. You can exchange common spare parts yourself and there is no need for you to periodically re-calibrate the instrument. Add more efficiency to your process thanks to continuous operation with twin sample safeguard.

Highly efficient

Reliable and flexible

Obtain precise and accurate results thanks to highest wavelength precision with NIRFlex N-500. Directly and effortlessly transfer calibrations from instrument to instrument. Precisely analyze different sample types, including solid, powder, tablet, granule, paste, liquid forms, by specialized measuring options.

Reliable and flexible

Features

  • We have set a new standard in terms of continuous operation of an NIR spectrometer.Our NIR spectrometers are equipped with a twin lamp module that automatically switches to a second integrated lamp in the event of a failure of the primary source. This minimizes the risk of instrument failure and you have sufficient time to order a replacement lamp. Meanwhile you can continue your measurements without further intervention.

    The twin lamp module
  • We have adapted the successful quartz polarization interferometer by using crystals with a very high refractive index. This leads to optimum resolution and a compact design maintaining the advantage of insensitivity to mechanical disturbances. The reason for the superior performance of this interferometer in rough environments is the difference of spatial movements and the optical path shifts for the two light beams in a birefringent crystal of variable thickness. Whereas in a Michelson type interferometer mechanical distortions directly affect the interference, such effects are reduced by a factor of 10 to 20 in a crystal interferometer.

    The BUCHI polarization interferometer
  • Each BUCHI FT-NIR spectrometer is equipped with various gray filters and a wavelength standard. With these features and specifically designed software modules, you can readily check wavelength accuracy, signal-to-noise ratio, and linearity. These measurements form the System Suitability Test (SST), which is indispensable for meeting regulations in the pharmaceutical industry.

    The integrated standards

Compare the NIRFlex N-500™

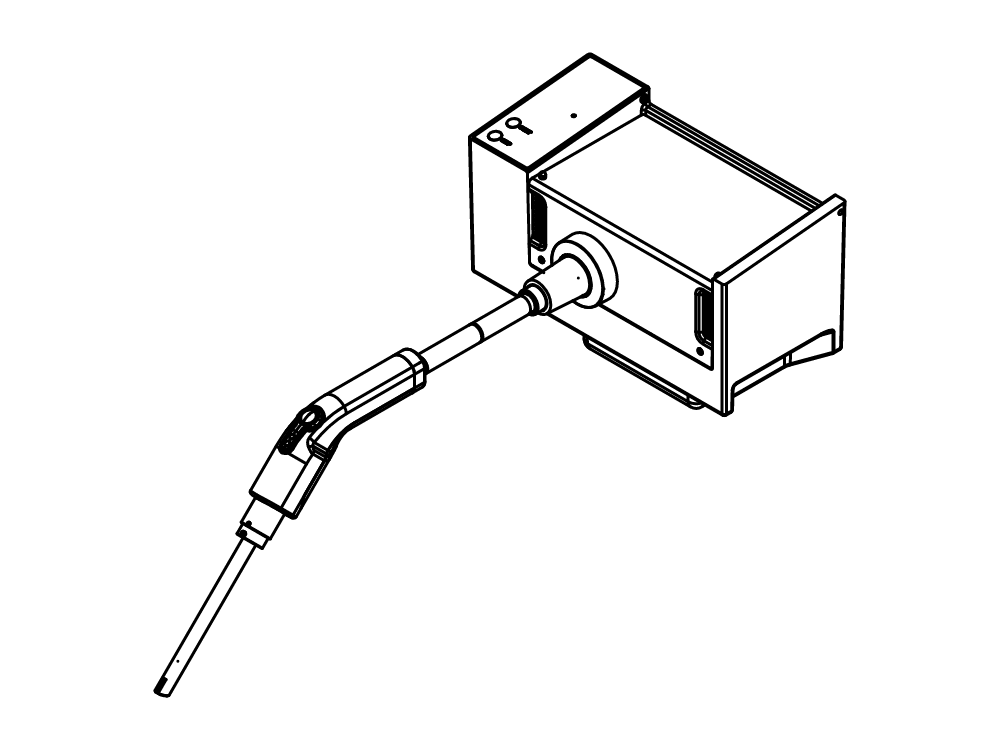

  • Advanced Package NIRFlex Fiber Optic Solids (2 m)

    • Wavenumber range : -
    • Sampling technique : -
    • Maximal number of samples : No
    • Sample rotation : No
    • Type of spectrometer : FT-Polarization interferometer with TeO2 wedges
    • Type of detector : InGaAs

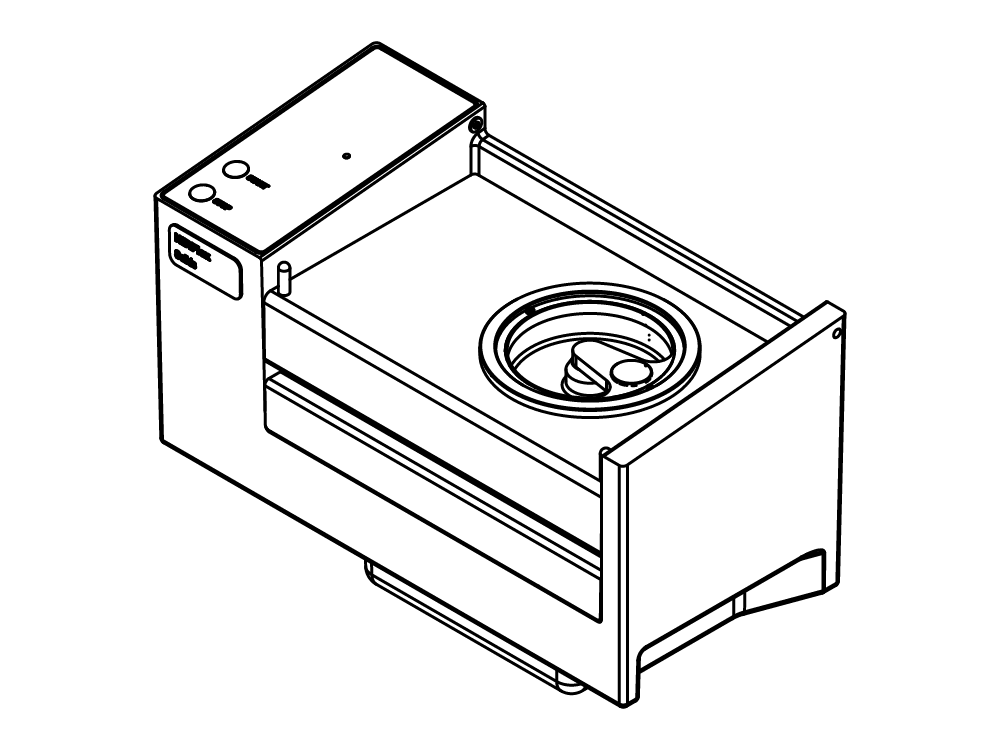

  • Advanced Package NIRFlex Solids

    • Wavenumber range : -
    • Sampling technique : -
    • Maximal number of samples : No
    • Sample rotation : No
    • Type of spectrometer : FT-Polarization interferometer with TeO2 wedges
    • Type of detector : InGaAs
  • Advanced Package NIRFlex Liquids

    • Wavenumber range : -
    • Sampling technique : -
    • Maximal number of samples : No
    • Sample rotation : No
    • Type of spectrometer : FT-Polarization interferometer with TeO2 wedges
    • Type of detector : InGaAs
  • Advanced Package NIRFlex Solids Transmittance

    • Wavenumber range : -
    • Sampling technique : -
    • Maximal number of samples : No
    • Sample rotation : No
    • Type of spectrometer : FT-Polarization interferometer with TeO2 wedges
    • Type of detector : InGaAs
  • Advanced Package NIRFlex Fiber Optic Liquids

    • Wavenumber range : -
    • Sampling technique : -
    • Maximal number of samples : No
    • Sample rotation : No
    • Type of spectrometer : FT-Polarization interferometer with TeO2 wedges
    • Type of detector : InGaAs
“Fast, accurate & efficient system with timely support service.” Covestro (India) Pvt Ltd - Vimal Pathak, Sr. Executive Quality Control Laboratory
“BUCHI NIRSolutions are significant tools in helping maintain our high quality standards at Mead Johnson Nutrition” Mead Johnson Nutrition, USA - Mrs. Susan Christopoulos, NIR/QC Senior Lab Analyst
“Takeda Pharma GmbH is controlling more than 30000 containers per year. NIR allows to save time without losing safety.” Takeda Pharma GmbH, Germany - Mr. Armin Groh, Laboratory Manager Quality Control

Downloads

Discover more documents

Applications

Enhancing productivity and quality

We offer a broad spectrum of tailored NIRSolutions™ meeting the needs of your business from the analysis of common nutritional parameters in food production to quality control of pharmaceutical dosage forms.
  • Pharma

    Perform regulatory compliant: raw material identification and/or qualification, tablet content uniformity analysis, final product release testing.

    Pharma
  • Food and Beverage

    Control dairy, meat, milling and other food products for moisture, macronutrients, ash and fiber, rheological properties.

    Food and Beverage
  • Academia

    Make new discoveries with BUCHI NIRSolutions™. We support the researchers' efforts with flexible products coupled with our application expertise.

    Academia
  • Environmental Analysis

    Customize accurate calibrations to measure: Moisture, organic carboon and total nitrogen content of soils, fertilizers formulation, biogas potential of biodegadable feedstock and urban waste.

    Environmental Analysis
  • Chemical

    Control processes by raw material qualification, hydroxyl number measurement, polymerization end-point determination, residual moisture/ solvent quantification.

    Chemical
  • Feed and Forage

    Test raw materials, premixes and finished products for: moisture, fat, protein, ash and fiber, ADF and NDF, amino acids.

    Feed and Forage
